ARO 137 Premium

Drivetrain

Brakes
Timbersled Pre-bleed
Case Gearing (Upper:Lower)
18:17
Chain Case / Belt Drive
52-520 X-Ring
Driver
2.86 pitch 6 tooth
Drivetrain Type
Chain Drive
Engine Chain / Inner Jackshaft Sprocket
520 X-Ring Chain
Jackshaft / Driveshaft
Standard
Track Dimensions (W x L x Lug inches)
11.5 x 137 x 2.5
Track Name / Feature
Traverse 2.5"

Dimensions

Estimated Dry Weight - Front (lbs/kg)
16.0 / 7.25
Estimated Dry Weight - Rear (lbs/kg)
120 / 53
Overall Length
73 in (185.4 cm)

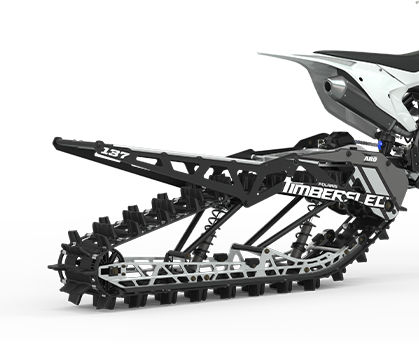

Rear Suspension

Hyfax
Standard
Rail Color
Natural
Rear Travel - Fixed Fit Kit (in./cm.)
12.0 / 30.5
Rear Travel - TSS Fit Kit (in./cm.)
20.0 / 50.8

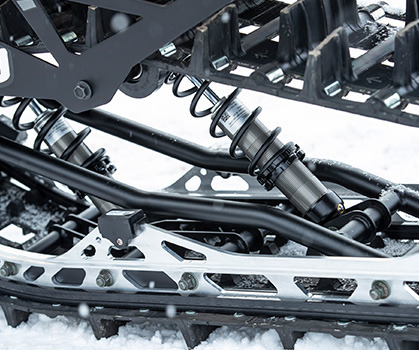

Shocks
Timbersled IFP
Suspension Arm Color
Black
Suspension Type
ARO

Chassis

Bumper
Included
Bumper Color
Natural / Black
Chassis
ARO 137
Frame Color
Natural / Black
Graphics
Black / Silver
Side Panel Color
Black
Snow Flap
N/A

Front Suspension

Ski Hoop Color
Black
Ski Type
Traverse®
Spindle
Lightweight
Spindle Color
Black

Features

Fuel Storage
Accessory (2.9 gal / 11 L)
Install Kits
ARO/RIOT Fixed or TSS
Storage
Accessory
