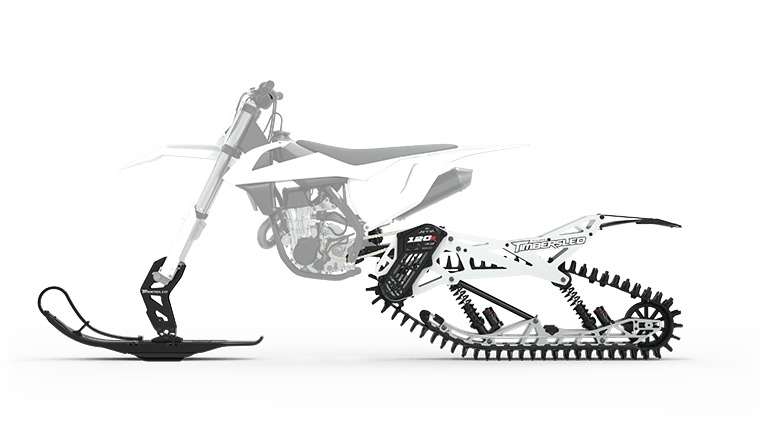

120R

Drivetrain

Chain Case Chain
EK520 SRX2 52 Link (continuous)
Chain Slider
Standard
Disc Brake Type
Wilwood Hydraulic Dual Piston
Drive Chain
EK520 SRX2 70 Link (master link)
Jack Shaft Sprocket
17 tooth - 15t spline
Lower Chain Case Sprocket
17 tooth - 15t spline
Upper Chain Case Sprocket
18 tooth - 15t spline

Dimensions

Estimated Dry Weight - Front (lbs/kg)
16.5 / 7.25
Estimated Dry Weight - Rear (lbs/kg)
Overall Length - pivot to bumper (in/cm)
63 / 160

Front Suspension

Front Track Shock
FOX® 1.5 Zero LSC-R
Rear Suspension
Timbersled ARO™ Long Travel
Rear Track Shock
FOX® 1.5 Zero LSC-R
Rear Travel - Fixed Install Kit (in/cm)
12 / 30.5
Rear Travel - TSS Install Kit (in/cm)
20 / 50.8
Skag Type
MH Race
Ski Type
Mountain Horse
Track Width / Length / Height (in)
11.5 x 120 x 2.5 Traverse Track™

Features

Color / Graphics
Black / White
Fuel Storage
N/A
Fuel Storage Strap
N/A
Install Kits
ARO Fixed Strut/Suspension Strut
Storage
N/A
Storage Mat
N/A
