MODEL ARCHIVE

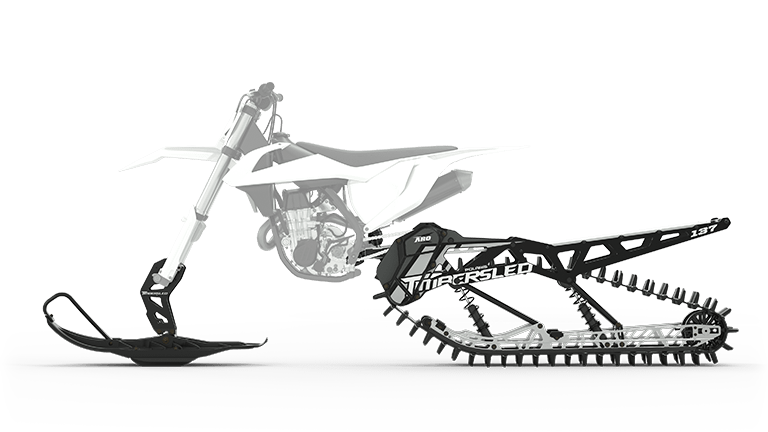

ARO 137

Drivetrain

Chain Case Chain
520 X-Ring 52 Link (continuous)
Chain Slider
Standard
Disc Brake Type
Wilwood Hydraulic Dual Piston
Drive Chain
520 X-Ring 70 link (master link)
Jack Shaft Sprocket
17 tooth - 15t spline
Lower Chain Case Sprocket
17 tooth - 15t spline
Upper Chain Case Sprocket
18 tooth - 15t spline

Dimensions

Estimated Dry Weight - Front (lbs/kg)
16.0 / 7.25
Estimated Dry Weight - Rear (lbs/kg)
117.0 / 53.1
Overall Length - pivot to bumper (in/cm)
72.0 / 182.9

Front Suspension

Front Track Shock
Timbersled IFP
Rear Suspension
Timbersled ARO™ Long Travel
Rear Track Shock
Timbersled IFP
Rear Travel - Fixed Install Kit (in/cm)
12 / 30.5
Rear Travel - TSS Install Kit (in/cm)
20 / 50.8
Skag Type
Timbersled Traverse™ Hardened
Ski Type
Timbersled Traverse Ski™
Track Width / Length / Height (in)
11.5 x 137 x 2.5 Traverse Track™

Features

Color / Graphics
Black/Silver/White
Fuel Storage
Accessory (3.5 gal / 13.2 L)
Fuel Storage Strap
Accessory
Install Kits
ARO Fixed Strut/Suspension Strut
Storage
Accessory
Storage Mat
Accessory
